AR-Series Limbs

Important: Using arrows lighter than 178 grains (6.3oz) with the 120 and 150 lbs limb can lead to damage to the limb tips, limb, or the crossbow itself. The 90-lb limb should only be used with arrows weighing 155 grains (5.5oz) or more. THERE IS NO ARROW WEIGHT REQUIREMENT WITH THE M10 TACTICAL AND OTHER STRING-DAMPENER EQUIPPED CROSSBOWS.

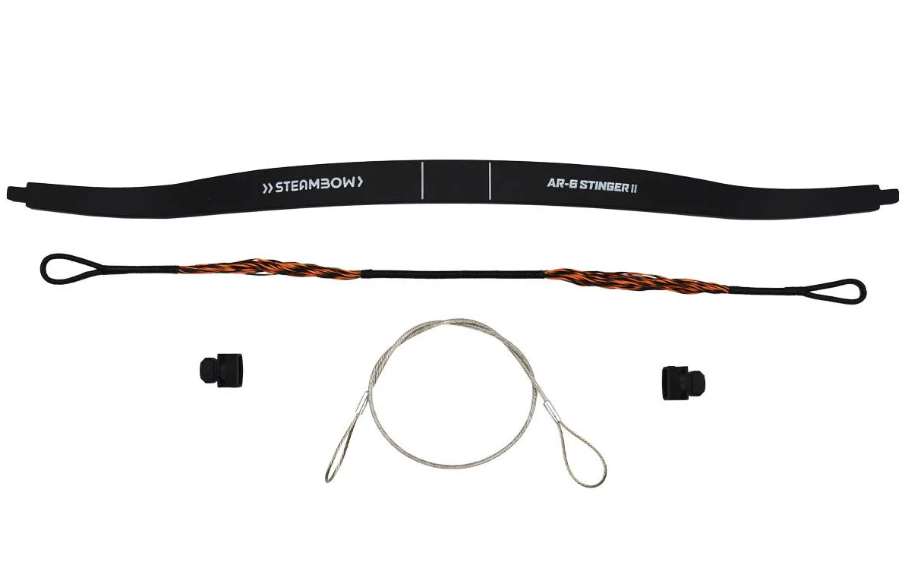

AR-Series Limbs

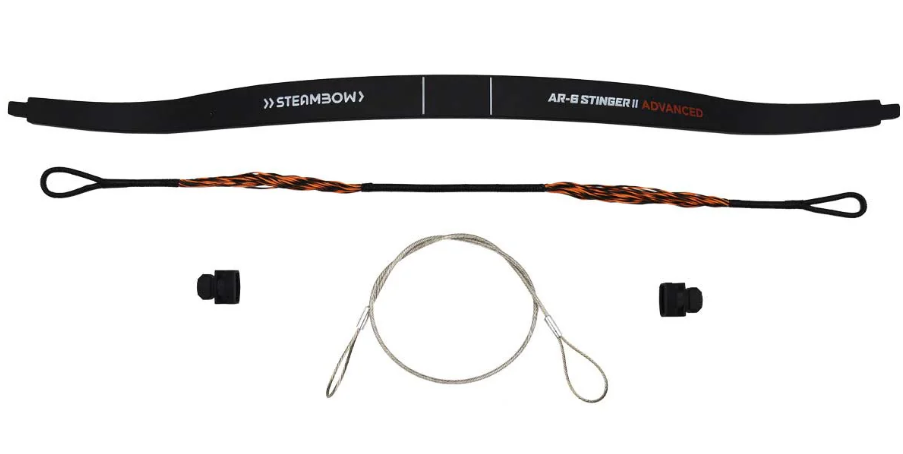

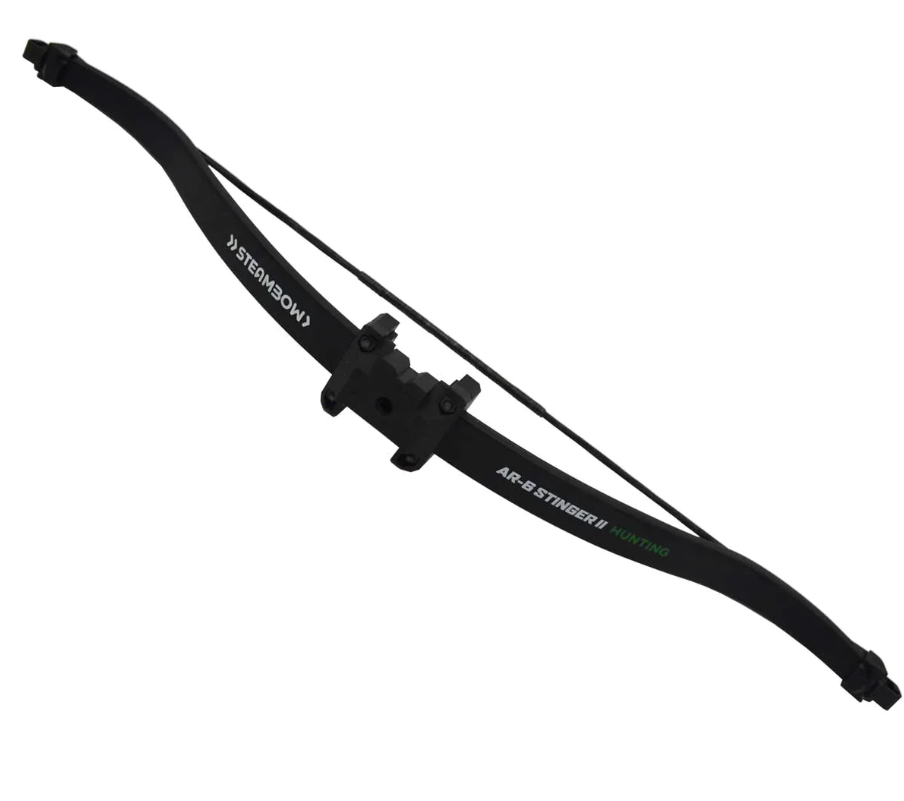

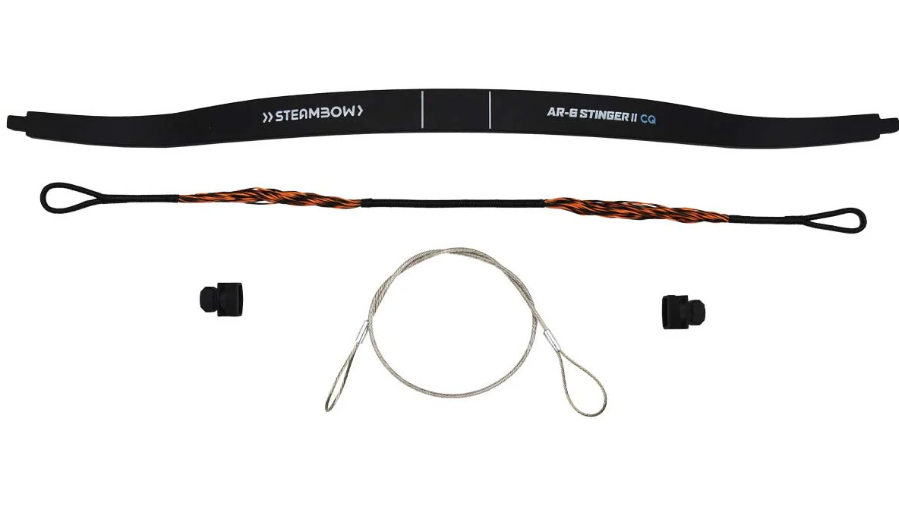

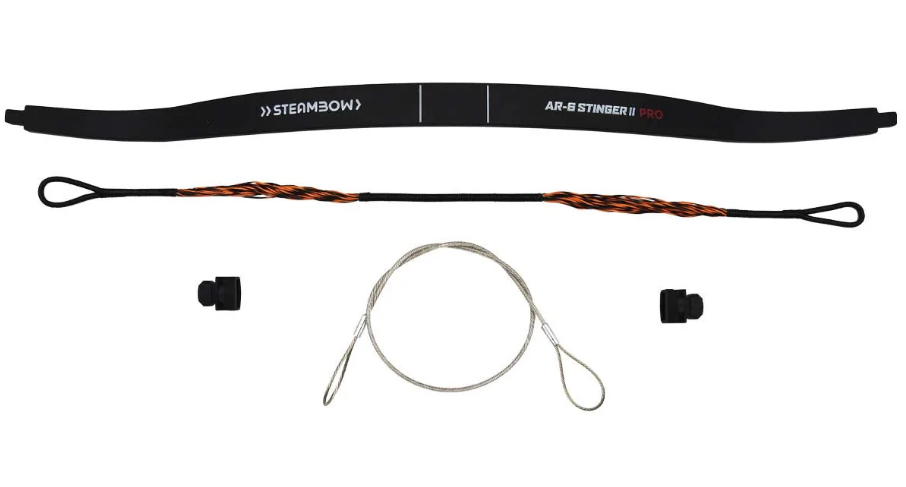

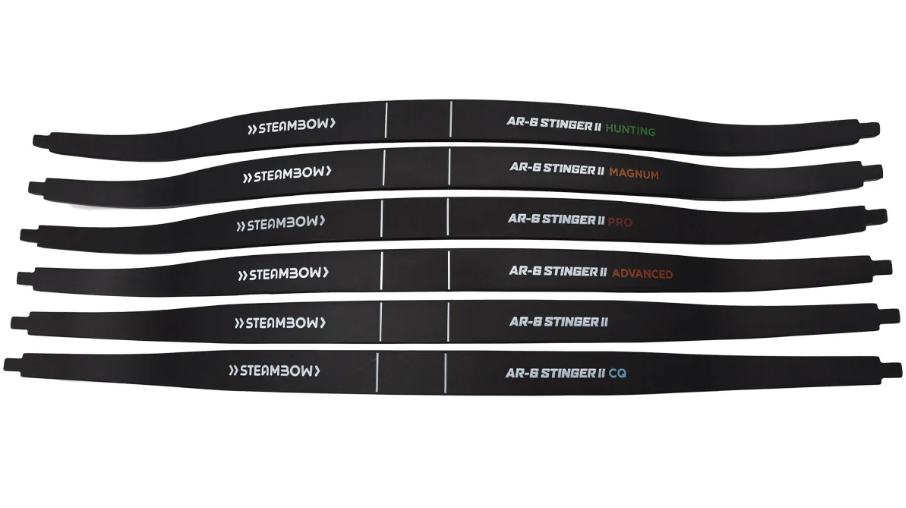

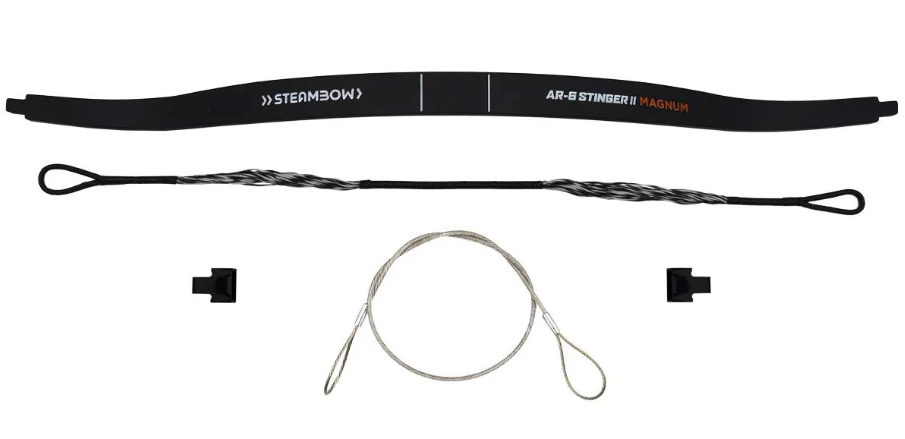

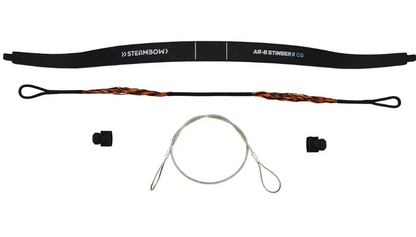

Enhance your crossbow with our AR-Series Limbs, available in a wide range of draw weights to meet every shooter's needs. Made from a high-performance blend of fiberglass and carbon, these limbs deliver increased speed, strength, and durability compared to standard pistol crossbow limbs.

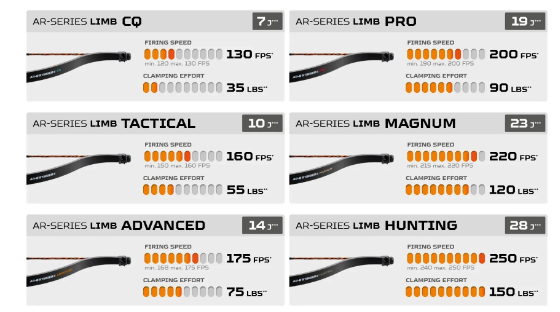

• Minimum FPS Rating: Each limb set guarantees a minimum arrow speed, measured using 6.2 x 162 mm aluminum practice arrows (9.2 g / 142 grains, item no. 0000215). To achieve this performance, an original string in good condition is required, along with a brace height of 65mm and a power stroke of at least 150mm using an AR-Series Stinger II main body.

• Draw Weight (lbs): The listed draw weight gives an approximate idea of the effort needed to cock the bow. Slight variations may occur due to the manufacturing process. High-quality limbs often require less effort to reach their rated performance.

• Kinetic Energy: The stated kinetic energy provides a guideline for understanding the crossbow’s potential power. Maximum energy output is achieved when using heavier arrows, especially at higher draw weights. Keep in mind that the type of arrowhead used significantly impacts the crossbow's danger potential — hunting arrows are always considered potentially lethal, regardless of muzzle energy.
